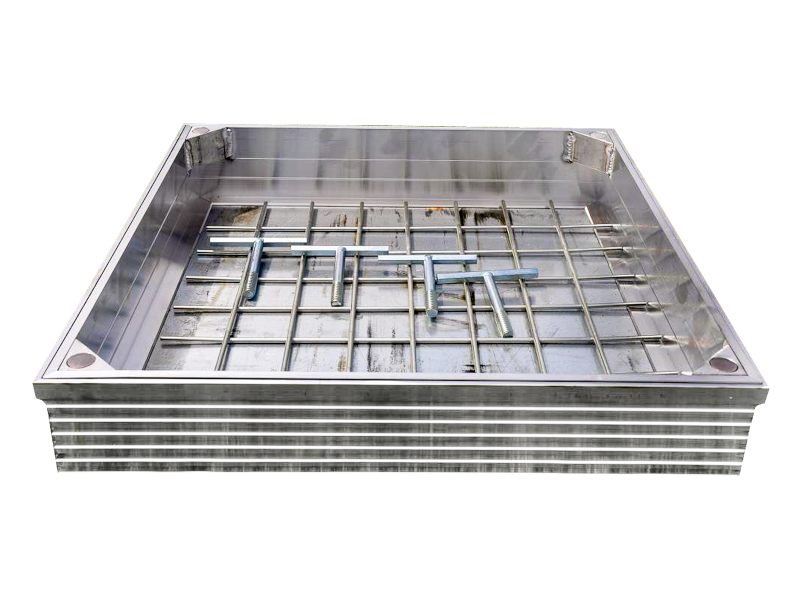

The access cover is both odor- and waterproof and is securely screwed to the frame. A lifting key set is included as standard, allowing the cover to be opened easily and safely.
The frame and cover are made of extruded aluminum profile.
Application: Indoor and outdoor use.
Installation heights: 40 mm
Equipped with a reinforcement mesh as standard.
3 mm galvanized steel plate.
The access cover is fitted with a round EPDM gasket on the bottom and a T-rubber gasket on the outer frame. This combination reliably prevents the ingress of dirt, dust, and moisture. The elastic effect of the gaskets compensates for tension between the frame and cover - for a durable, warp-free construction.
The T-rubber gasket serves three functions:
- It prevents dirt between the cover and frame.
- It provides an additional odor barrier.
- It compensates for tension between the frame and cover.
Standard sizes
| Frame size (mm) |
Opening size (mm) |
Weight (kg) |
| DCL-40 |
DCL-60 |
DCL-80 |
DCL-100 |
| 300 x 300 | 240 x 240 | 3.47 | 3.86 | 4.60 | 4.94 |
| 400 x 400 | 340 x 340 | 5.56 | 6.08 | 7.04 | 7.43 |
| 500 x 500 | 440 x 440 | 8.29 | 8.94 | 10.39 | 10.83 |
| 600 x 600 | 540 x 540 | 11.47 | 12.25 | 14.15 | 14.41 |
| 700 x 700 | 640 x 640 | 15.05 | 15.96 | 18.60 | 18.39 |
| 800 x 800 | 740 x 740 | 19.30 | 20.33 | 23.35 | 23.04 |
| 900 x 900 | 840 x 840 | 23.95 | 25.11 | 28.80 | 28.09 |
| 1000 x 1000 | 940 x 940 | 29.45 | 30.73 | 34.82 | 33.99 |
Frame: 300 x 300
Opening: 240 x 240
DCL-40: 3.47 kg
DCL-60: 3.86 kg
DCL-80: 4.60 kg
DCL-100: 4.94 kg
Frame: 400 x 400
Opening: 340 x 340
DCL-40: 5.56 kg
DCL-60: 6.08 kg
DCL-80: 7.04 kg
DCL-100: 7.43 kg
Frame: 500 x 500
Opening: 440 x 440
DCL-40: 8.29 kg
DCL-60: 8.94 kg
DCL-80: 10.39 kg
DCL-100: 10.83 kg
Frame: 600 x 600
Opening: 540 x 540
DCL-40: 11.47 kg
DCL-60: 12.25 kg
DCL-80: 14.15 kg
DCL-100: 14.41 kg
Frame: 700 x 700
Opening: 640 x 640
DCL-40: 15.05 kg
DCL-60: 15.96 kg
DCL-80: 18.60 kg
DCL-100: 18.39 kg
Frame: 800 x 800
Opening: 740 x 740
DCL-40: 19.30 kg
DCL-60: 20.33 kg
DCL-80: 23.35 kg
DCL-100: 23.04 kg
Frame: 900 x 900
Opening: 840 x 840
DCL-40: 23.95 kg
DCL-60: 25.11 kg
DCL-80: 28.80 kg
DCL-100: 28.09 kg
Frame: 1000 x 1000
Opening: 940 x 940
DCL-40: 29.45 kg
DCL-60: 30.73 kg
DCL-80: 34.82 kg
DCL-100: 33.99 kg
| Specifications "Access Cover DCL-40" |
| Material |
Aluminium |
| Suitable for |
Tiles, slabs, paving stones |
| Reinforcement mesh |
included |
| Installation heights |
40 mm |
| Water resistance |
The access cover DCL-40 is waterproof. |
| Application |
Indoor and outdoor use |
| Sizes |
Standard and custom-made |
1. Product sheet for access cover DCL-40 (PDF)
