Frame: 400 x 400
Opening: 310 x 310
Diameter: Ø 235
TPL-60: 7.56 kg
TPL-80: 8.86 kg
TPL-100: 9.60 kg

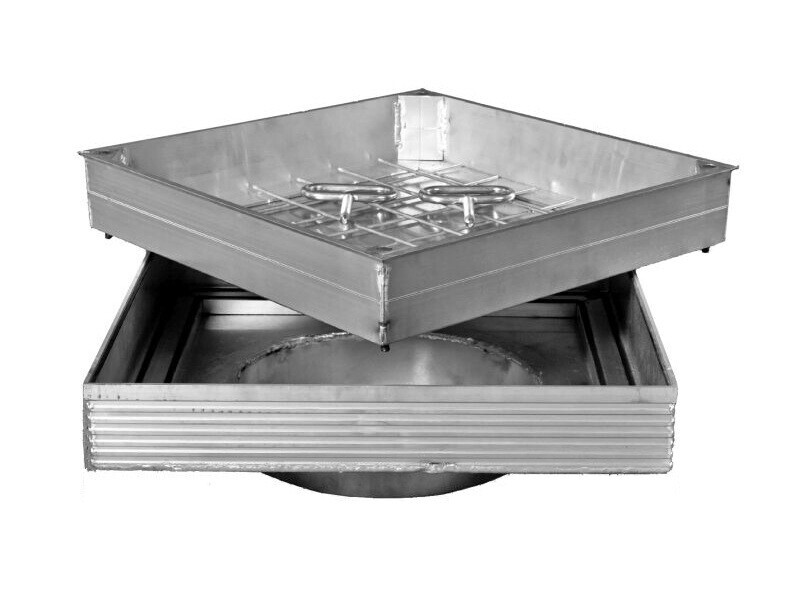

The manhole cover is odor-, gas- and watertight and is firmly screwed to the frame. A lifting key set is included as standard, which allows the cover to be opened easily and safely.
Frame and cover are made of extruded aluminum profile.
Application: Indoor and outdoor use.
Installation height: 80 mm
| Frame size (mm) AxB | Opening size (mm) CxD | Weight (kg) | ||
|---|---|---|---|---|
| TPL-60 | TPL-80 | TPL-100 | ||
| 400 x 400 | 310 x 310 / Ø 235 | 7.56 | 8.86 | 9.60 |
| 500 x 500 | 410 x 410 / Ø 295 | 11.08 | 12.39 | 13.27 |
| 600 x 600 | 510 x 510 / Ø 375 | 15.22 | 16.72 | 17.74 |
| 700 x 700 | 610 x 610 / Ø 585 | 19.06 | 20.75 | 21.91 |
| Specifications "Manhole Cover TPL-80" | |
|---|---|
| Material | Frame and cover made of extruded aluminum profile |
| Suitable for | Tiles, slabs, paving stones |
| Reinforcement grid | included as standard |
| Installation height | 80 mm |
| Base plate | 3 mm galvanized steel (optional: 3 mm aluminum) |
| Seals | three seals (two round EPDM seals at the bottom + one T-rubber seal on the side in the outer frame) |
| Water tightness | watertight and odor-tight, firmly screwed to the frame |
| Application | Indoor and outdoor use |
| Opening | with lifting key set (included in delivery) |
| Sizes | Standard sizes and custom-made special designs |
1. Product sheet for access cover TPL-80 (PDF)
