Manhole cover DCP-40

Manhole covers / inspection covers

Manhole cover DCP-40

Free shipping over 80 €!
Delivery time: 3-5 business days
Pay within up to 30 days with Klarna buyer protection
Can't find the right size? Some sizes are available on request!

Dimensions (mm)

Quantity

pcs

171.54 €

Including Tax:

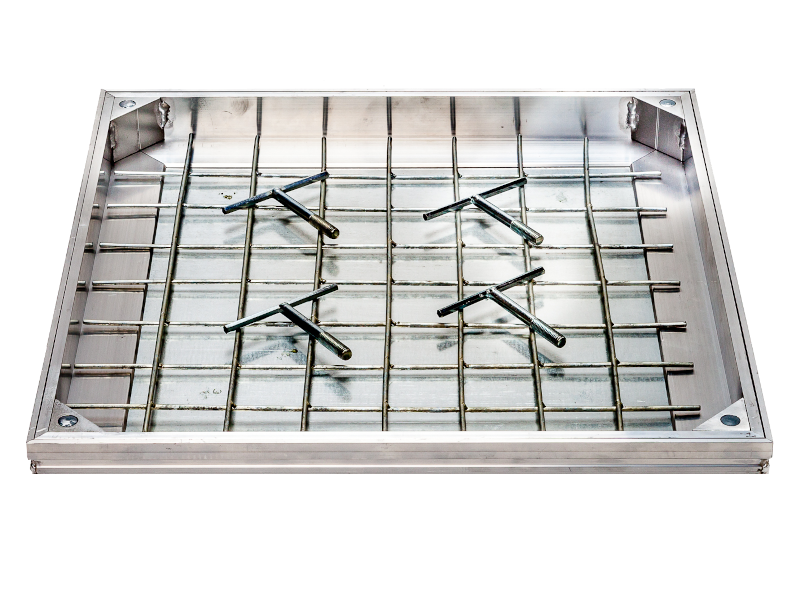

The access cover is gas-, odour- and water-tight and is securely screwed to the frame. A lifting-key set is included as standard, allowing the cover to be opened easily and safely.

Frame and cover are made of extruded aluminium profile.

Application: Indoor and outdoor use.

Installation height: 40 mm

Standard equipped with a reinforcement mesh.
3 mm galvanized steel plate.
On request also available with a 3 mm aluminium bottom plate.

The access cover is equipped at the base with two seals and laterally with a T-rubber seal in the outer frame. This combination reliably prevents the ingress of dirt, dust, moisture and gas. The elastic effect of the seals compensates for stresses between the frame and the cover - ensuring a durable, distortion-free construction.

The T-rubber seal performs three functions:

It prevents dirt between the cover and the frame.
It provides an additional odour and gas barrier.
It compensates for stresses between the frame and the cover.

Differences between DCP and DCL access covers

Both models - DCP and DCL - have a very similar design and many identical features. Nevertheless, there are some technical differences that can be decisive when selecting the right model:

Number of seals: DCP is equipped with a total of three seals - two at the base and a T-rubber seal in the outer frame. DCL has a round EPDM seal at the base and a T-rubber seal.
Gas-tightness: DCP is additionally gas-tight, whereas for DCL odour and water tightness is specified.
Base plate: On DCP, the base plate is 3 mm galvanized steel as standard; a 3 mm aluminium plate is also available as an option. On DCL, the steel plate is standard.
Sealing concept: With two lower seals and the additional gas barrier, DCP provides enhanced protection against the ingress of gases, dirt and moisture.

In all other technical characteristics - such as material, area of application, installation height and operation with lifting keys - both models are identical.

Standard sizes

Frame size (mm)	Opening size (mm)	Weight (kg)
Frame size (mm)	Opening size (mm)	DCP-40	DCP-60	DCP-80	DCP-100
300 x 300	210 x 210	3.79	4.11	5.21	5.82
400 x 400	310 x 310	5.96	6.27	7.56	8.31
500 x 500	410 x 410	8.59	9.06	10.37	11.25
600 x 600	510 x 510	12.00	12.30	13.80	14.83
700 x 700	610 x 610	15.66	15.96	17.65	18.81
800 x 800	710 x 710	19.98	19.98	20.15	23.45
900 x 900	810 x 810	24.76	24.99	27.06	28.50
1000 x 1000	910 x 910	30.44	30.56	32.82	34.40

Frame: 300 x 300
Opening: 240 x 240
DCL-40: 3.47 kg
DCL-60: 3.86 kg
DCL-80: 4.60 kg
DCL-100: 4.94 kg

Frame: 400 x 400
Opening: 340 x 340
DCL-40: 5.56 kg
DCL-60: 6.08 kg
DCL-80: 7.04 kg
DCL-100: 7.43 kg

Frame: 500 x 500
Opening: 440 x 440
DCL-40: 8.29 kg
DCL-60: 8.94 kg
DCL-80: 10.39 kg
DCL-100: 10.83 kg

Frame: 600 x 600
Opening: 540 x 540
DCL-40: 11.47 kg
DCL-60: 12.25 kg
DCL-80: 14.15 kg
DCL-100: 14.41 kg

Frame: 700 x 700
Opening: 640 x 640
DCL-40: 15.05 kg
DCL-60: 15.96 kg
DCL-80: 18.60 kg
DCL-100: 18.39 kg

Frame: 800 x 800
Opening: 740 x 740
DCL-40: 19.30 kg
DCL-60: 20.33 kg
DCL-80: 23.35 kg
DCL-100: 23.04 kg

Frame: 900 x 900
Opening: 840 x 840
DCL-40: 23.95 kg
DCL-60: 25.11 kg
DCL-80: 28.80 kg
DCL-100: 28.09 kg

Frame: 1000 x 1000
Opening: 940 x 940
DCL-40: 29.45 kg
DCL-60: 30.73 kg
DCL-80: 34.82 kg
DCL-100: 33.99 kg

Specifications "Access Cover DCP-40"
Material	Aluminium
Suitable for	Tiles, slabs, paving stones
Reinforcement mesh	included
Installation height	40 mm
Tightness	The DCP-40 access cover is gas-, odour- and water-tight.
Application	Indoor and outdoor use
Bottom plate	3 mm galvanized steel, optional 3 mm aluminium
Sizes	Standard and custom-made

1. Product sheet for access cover DCP-40 (PDF)
