Recessed entrance mat with brush insert 11/30 mm STABLE and aluminium angle frame: R13 slip resistance, 20 mm low-profile, 2000 kg/dm². Order now, made to measure.

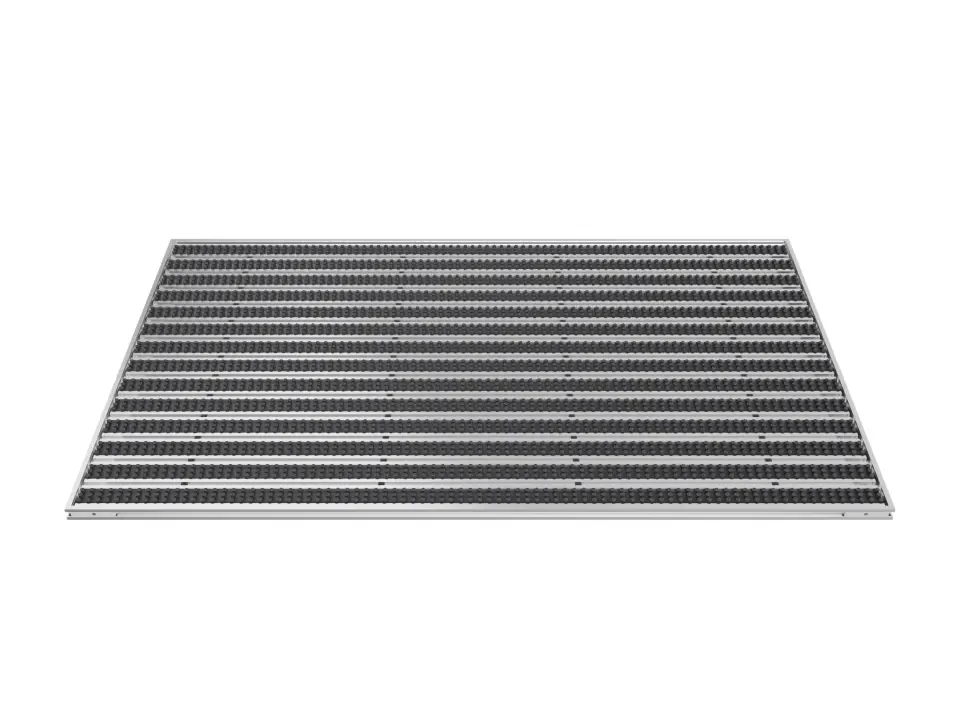

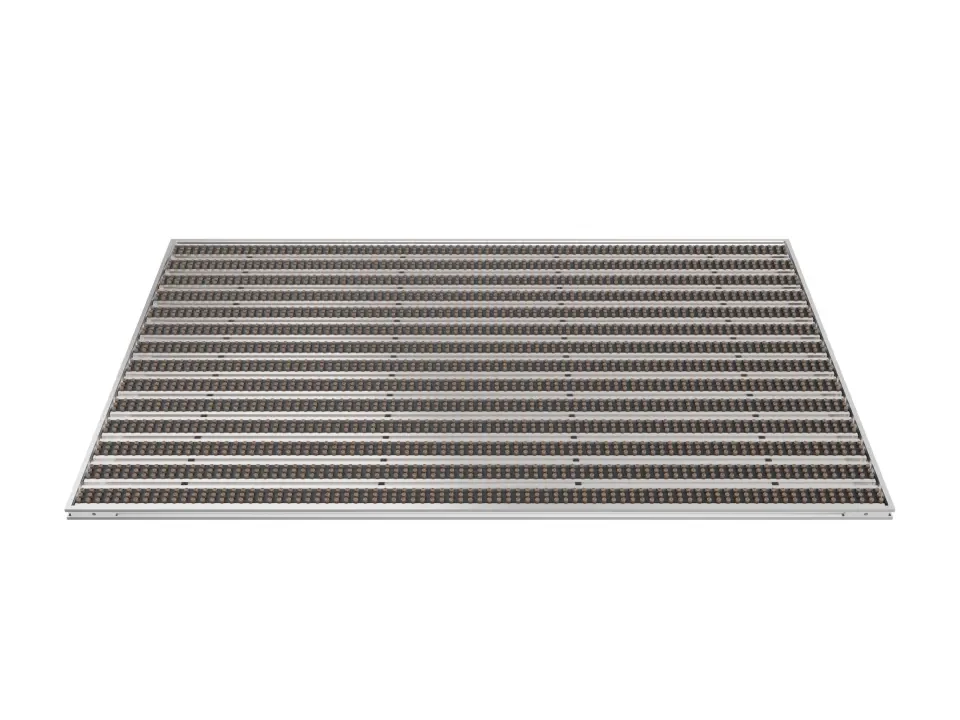

The STABLE 11/30 recessed entrance mat with cassette brush is the brush solution for shallow mat wells, with a reinforced support profile. The double-supported rectangular hollow aluminium profile with internal reinforcing webs (profile height 11 mm × profile width 30 mm) has a permissible dynamic load capacity of 2000 kg/dm² and, with the aluminium angle frame, requires an installation depth of only 14 mm – the lowest frame height in the Alukraft range. The cassette brush (Moplen EP440G) mechanically removes coarse dirt such as mud, snow, leaves and small stones from shoe soles and, with R13 to DIN 51130, achieves the highest slip resistance class in the entire range. The EPDM impact sound insulation on the underside keeps footsteps quiet, and the reaction to fire class is Bfl-s1 to DIN EN 13501. In the precisely fitting aluminium angle frame, the aluminium profile mat sits flush with the surrounding floor covering – accessible and without creating a trip hazard.
Compared with the STANDARD 12/30 brush mat, which has the same overall height of 20 mm and covers the same footfall of up to 50 people per day, this version differs in three measurable respects: a dynamic load capacity of 2000 instead of 1200 kg/dm², EPDM impact sound insulation instead of polypropylene foam, and a documented reaction to fire class of Bfl-s1. Within the 11/30 profile, the brush insert is also the only version with R13 and the only one recommended for Zone 1 outdoors – the rib insert version (18 mm, R11) is limited to Zones 2 and 3, while the rubber insert version (17 mm, R10) is 3 mm lower but cleans less aggressively by mechanical action. If footfall exceeds 50 people per day or a dirt collection tray is required, BÜRSTE STABLE 17/30 (brush insert), with an overall height of 27 mm, is the right choice.
The brush insert is approved for use in all three cleaning zones – Zones 1, 2 and 3 – and is therefore suitable for indoor and outdoor areas without restriction. Its strength lies in Zone 1, directly in front of the entrance: here it mechanically removes coarse dirt such as mud, snow, leaves and small stones from shoe soles before moisture and fine dirt are carried indoors.
The 11/30 profile is designed for footfall of up to 50 people per day. Recommended buildings in this footfall category are family homes, small offices and practices; the recommended clean-off zone area is 4–6 m² for a single zone. For entrance areas with higher footfall, profile heights of 17–20 mm are intended.
An Alukraft entrance mat is installed in exactly one of three mutually exclusive ways. This version is configured for installation Option A – angle frame installation: the aluminium angle frame with a frame height of 14 mm is set into the mat well, and the mat sits flush inside it, level with the surrounding floor covering. The required installation depth is 14 mm and corresponds to the height of the selected frame. A ramp profile is not required with this option.
The frame is assembled with corner connectors and straight connectors; floor anchors allow drill-free installation followed by levelling and grouting in with cement mortar, and pre-drilling for fixing screws is available as an option. The frame is also available in stainless steel (chromium-nickel) with a frame height of 15 mm. A fully precise fit is only guaranteed when the Alukraft entrance mats designed for it are used.
Alternative installation options for this profile:
Note on underfloor heating: For the STABLE series, the available installation options are compatible with underfloor heating in the entrance area. If installation screws are used for fixing, check the routing of the heating pipes beforehand.
| Properties ‘Recessed entrance mat with brush insert 11/30 mm STABLE and aluminium angle frame’ | |
|---|---|
| Application | indoor and outdoor use, Zones 1, 2 and 3; recommended as the first cleaning zone (Zone 1) |
| Cleaning insert | cassette brush, brush height 22 mm, Moplen EP440G; slip resistance R13 / DIN 51130; reaction to fire class Bfl-s1 / DIN EN 13501-1; production standard ISO 2424; use class 23 – domestic, heavy use (EN ISO 10874); colour fastness to light ISO 105-B02 ≥ 5; colours black, grey, brown, red |
| Footfall | up to 50 people per day; recommended clean-off zone area 4–6 m² for a single zone |
| Profile heights | 11 mm |
| Overall heights | 20 mm |
| Profile width | 30 mm |
| Profile spacing | 4–8 mm, spacer sleeves |
| Support profile | double-supported rectangular hollow aluminium profile with internal reinforcing webs, 11 × 30 mm; permissible dynamic load capacity 2000 kg/dm² |
| Weight per m² | mat 14 kg/m²; angle frame 0.26 kg/m² |
| Profile colour | natural aluminium, black anodised or powder-coated; angle frame in natural aluminium or natural stainless steel, black anodised on request |
| Connection | stainless steel wire rope connection Ø 2 mm / minimum breaking load 5.06 kN; fastening: chrome-plated brass screw clamp / DIN EN ISO 9001:2015; EPDM connectors and mat connectors not available in this series |
| Also suitable for | entrance areas with underfloor heating; shallow mat wells from 14 mm installation depth; permanent exposure to the weather outdoors; accessible entrances |
| Installation | Option A — aluminium angle frame 14 mm, flush installation in the mat well, min. installation depth 14 mm, corner and straight connectors, floor anchors, pre-drilling on request; alternatively stainless steel frame 15 mm; alternatively Option B — ramp profile 11 mm instead of the frame; Option C (dirt collection tray) not available |
| Can be combined with | no MIX combination with other profile heights or widths; insert combinations on the same profile as standalone products — RIPS/BÜRSTE STABLE 11/30 1:1 (rib and brush inserts in a 1:1 ratio; 20 mm, R12), GUMMI/BÜRSTE STABLE 11/30 1:1 (rubber and brush inserts in a 1:1 ratio; 20 mm, R11), RIPS/GUMMI/BÜRSTE STABLE 11/30 1:1:1 (rib, rubber and brush inserts in a 1:1:1 ratio; 20 mm, R11) |
| Properties | dimensionally stable, sound-insulating thanks to 1.5 mm EPDM impact sound insulation, easy to clean, weather-resistant, can be rolled up, modular design with interchangeable inserts, accessible thanks to low-profile design; not suitable for forklifts or construction hoists |
| Warranty | 8 years on the aluminium construction, 2 years on rubber products |
| Accessories | angle frame in aluminium 14 mm or stainless steel 15 mm; ramp profile 11 mm as an alternative to the frame; Laser Cut Design with company logo or slogan, connection Ø 2 mm, profile thickness 2 mm + 1 mm inner panels, max. length 2990 mm; dirt collection tray and mat connectors not available for this profile |
